Specification

Product Information
Type item	LED aluminum profile
Model No.	ST-1715-3-W
Body material	6063 T5 aluminum alloy

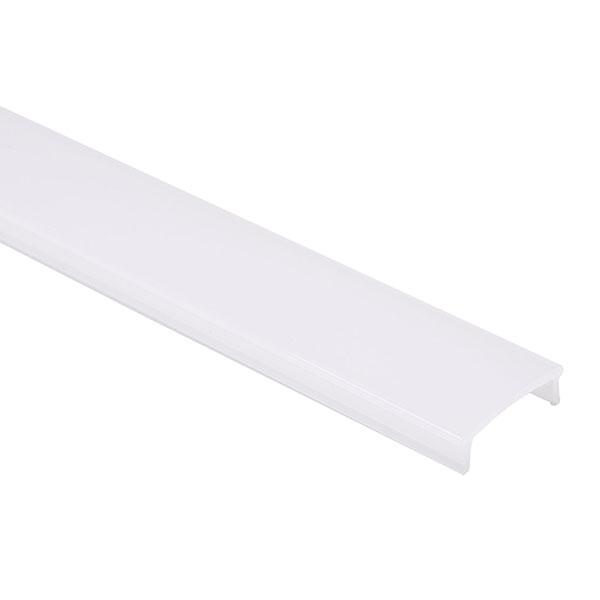

Cover material	PC
installation	Surface mounting or recessed

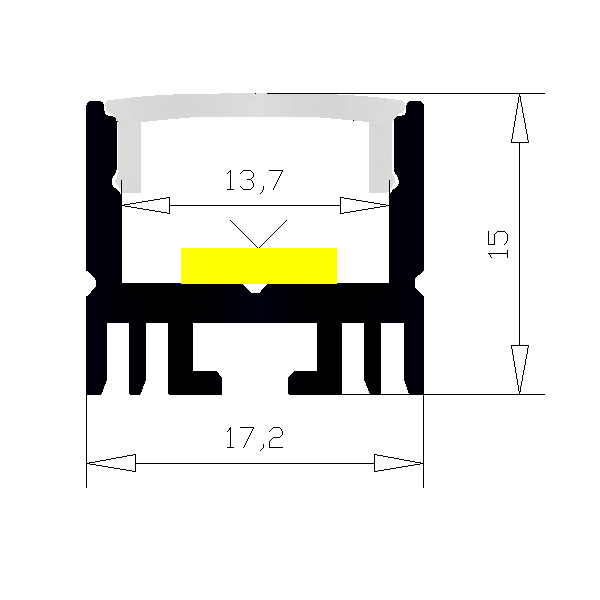

Size	W 17 * H 15mm
Width of PCB	13mm
Accessories	end caps,clips, PC Cover

Product description

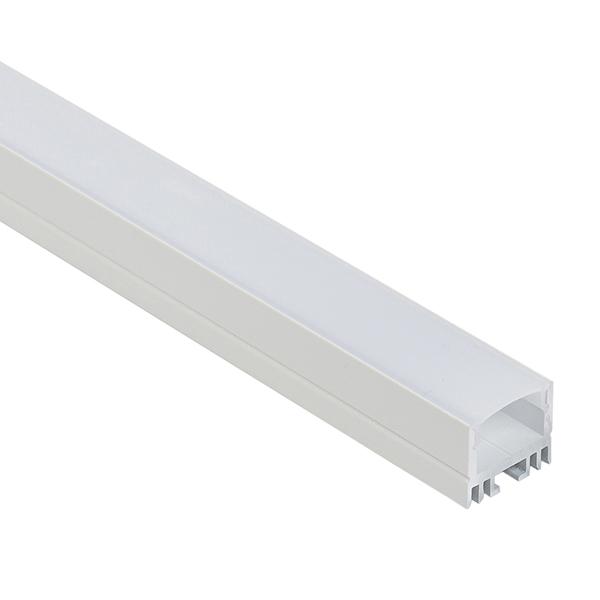

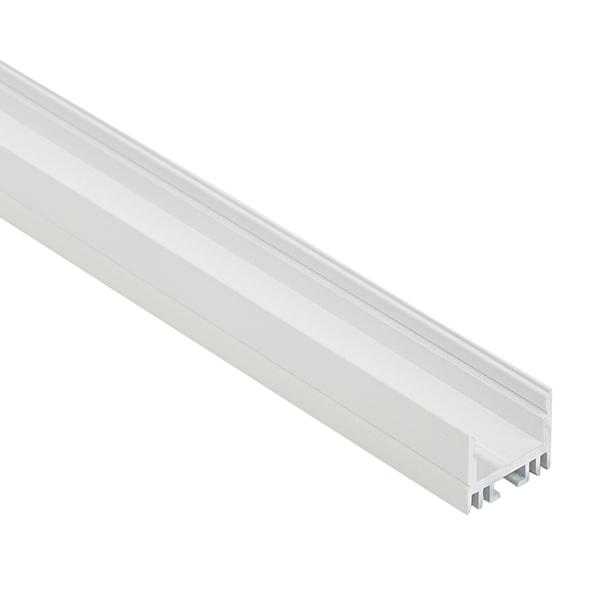

LED aluminum profile for LED strip

This is an aluminum profile for led strip light as a housing protect LED,It's not only a great housing for led strip lights but also as a  heat sink for them as well.And easy to install,recessed mounted&surface mounted& hoisting and installation.

LED aluminum profile for LED strip(classification according to surface treatment requirments)

1. Anodizing profiles
2.Electrophresis profiles
3.Powder coating profiles(spraying)

LED aluminum profiile for LED strip

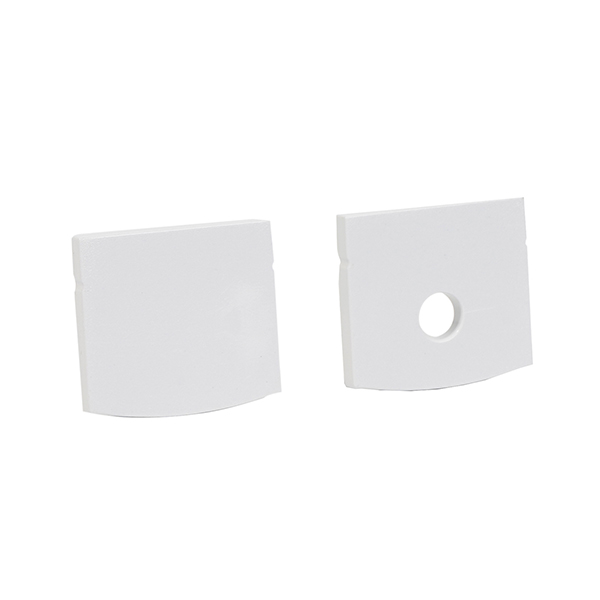

End caps(one with hole,one without hole) for both ends of LED aluminum profiles.

LED aluminuminum profile for LED strip

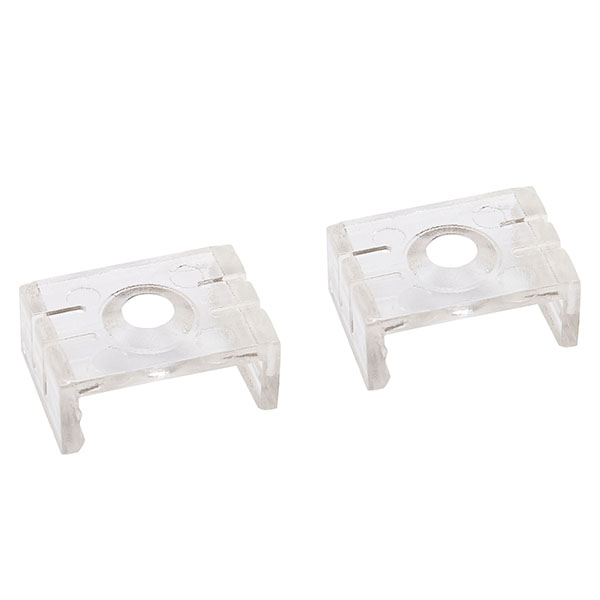

Clips,it's used for fix aluminum profile and installation.
